Cube J
Spacification
Rev 1.1
2020年2月

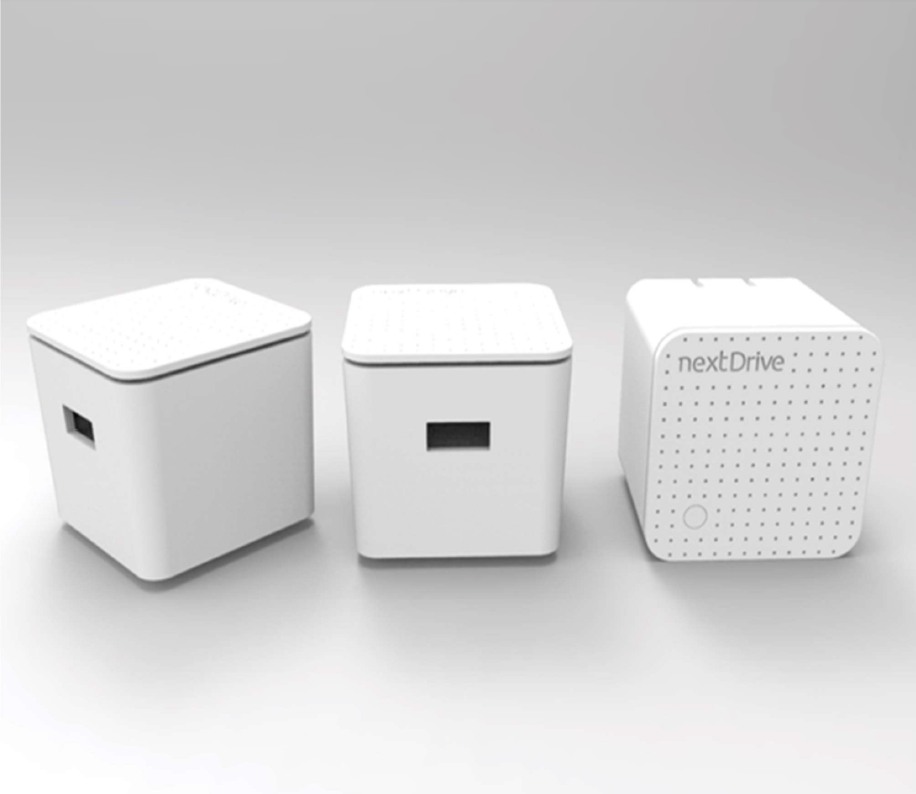

Product name & Industrial Design
- Product Name：NextDrive Cube-J
- Product ID
Product Features
- Build in WiFi for Smartphone and PC wireless access.
- Support iOS, Android, and other OS by Free App download
- Separate three color LEDs for system indicator.
- Support NextDrive Ecogeine App
- Wi-Fi Concurrent mode with data bridge
- Support Wi-Fi 11ac @10M distance & 10MB/s
- support Wi-SUN 920MHz, 100kpbs
- Support Webcam video stream to Portable Device
- USB Output 5V@0.5A
Summary
| Item | Description |
| CPU | Rockchip RK3128（Quad-core Cortex-A7） |
|
RAM |
1 GB |
| EMMC | 16 GB |
| Wi-SUN | Rohm BP35C0 Module |
| Wi-Fi | 802. 11a/b/g/n/ac |
| Bluetooth | BLE 4.2 |
| USB | Support USB 2.0 Type A Female |
| LED | RED, GREEN, BLUE （3 Colors） |
| Operating temperature | 0℃ ～ 40℃ |
| Strage Temp | -20℃ ～ 60℃ |
| Humidity | 20 ～ 80% （No condensation） |
| HBM（Contact） | > 4KV |
| ESD（Air） | > 10KV |
| Power consumption | 2.5W（typ.） |
| AC power input | AC 90-264V 47～63Hz |
| Dimensions | 48×48×43 mm |
| Weight | 80 g |
| Certificate | TELEC, PSE, VCCI, AIF |
